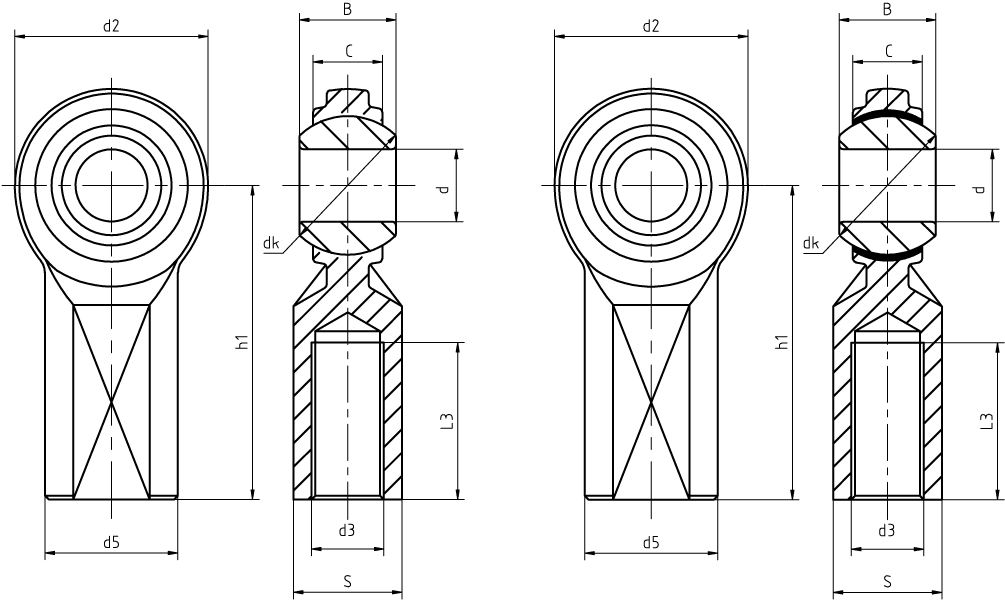

Bearing Code
|
Dimensions in Inch
|
Load ratings(KN)
|
≈a°
|
Weight(kg)
|
|||||||||
|
d
|
d2
|
B
|
C1 max
|
BALL
|
h1
|
d3 UNF/2B
|
I3 min
|
d5
|
S
|
||||
|
CF3
CF3T |
0.1900
|
0.625
|
0.312
|
0.234
|
0.437
|
1.25
|
10-32
|
0.750
|
0.406
|
0.312
|
9.25
|
17
|
0.02
|
|
CF4
CF4T |
0.2500
|
0.750
|
0.375
|
0.250
|
0.500
|
1.56
|
1/4-28
|
1.000
|
0.468
|
0.375
|
14.3
|
21
|
0.022
|
|
CF5
CF5T |
0.3125
|
0.875
|
0.437
|
0.312
|
0.625
|
1.88
|
5/16-24
|
1.250
|
0.500
|
0.437
|
17.01
|
17
|
0.028
|
|
CF6
CF6T |
0.3750
|
1.000
|
0.500
|
0.359
|
0.719
|
1.94
|
3/8-24
|
1.250
|
0.687
|
0.562
|
22.63
|
19
|
0.06
|
|
CF7
CF7T |
0.4575
|
1.130
|
0.562
|
0.406
|
0.812
|
2.13
|
7/16-20
|
1.375
|
0.750
|
0.625
|
28.4
|
18
|
0.084
|
|
CF8
CF8T |
0.5000
|
1.310
|
0.625
|
0.453
|
0.937
|
2.44
|
1/2-20
|
1.500
|
0.875
|
0.750
|
40.45
|
17
|
0.135
|
|
CF10
CF10T |
0.6250
|
1.500
|
0.750
|
0.484
|
1.125
|
2.63
|
5/8-18
|
1.625
|
1.000
|
0.875
|
43.21
|
22
|
0.2
|
|
CF12
CF12T |
0.7500
|
1.750
|
0.875
|
0.593
|
1.312
|
2.88
|
3/4-16
|
1.750
|
1.125
|
1.000
|
63.2
|
18
|
0.3
|
CF/CF…T
CF…
CF…T
*For left-hand thread,suffix”L”is added to bearing number and thread sign,e.g.CFL10.
Sliding contact surfaces:CF..Steel/Steel CF..T:Steel/PTFEcomposite material
